Residential and Commercial Gate Openers

Swing and slide gate openers from LiftMaster, Nice and USAutomatic for driveways, ranches and commercial properties.

Davis Door Service installs and services automatic gate openers for driveways, ranches and commercial properties. We work with several brands, including LiftMaster, Nice and USAutomatic, so we can match the opener to your gate, your power supply and how often the gate runs. Residential swing gate openers are listed first, followed by slide gate operators for commercial and high-traffic gates.

Residential Gate Openers
Commercial Gate Openers

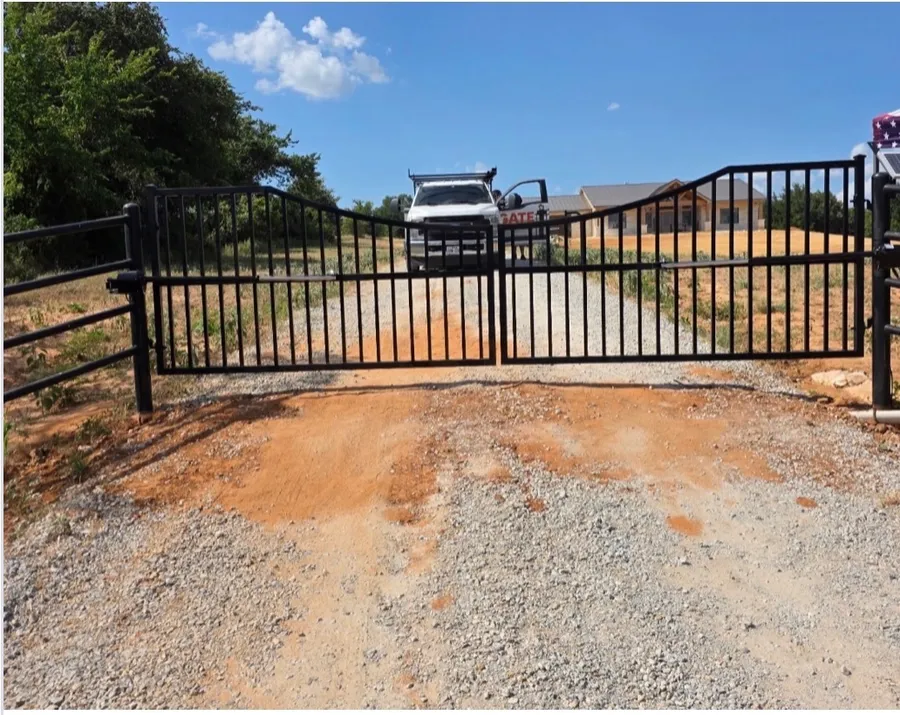

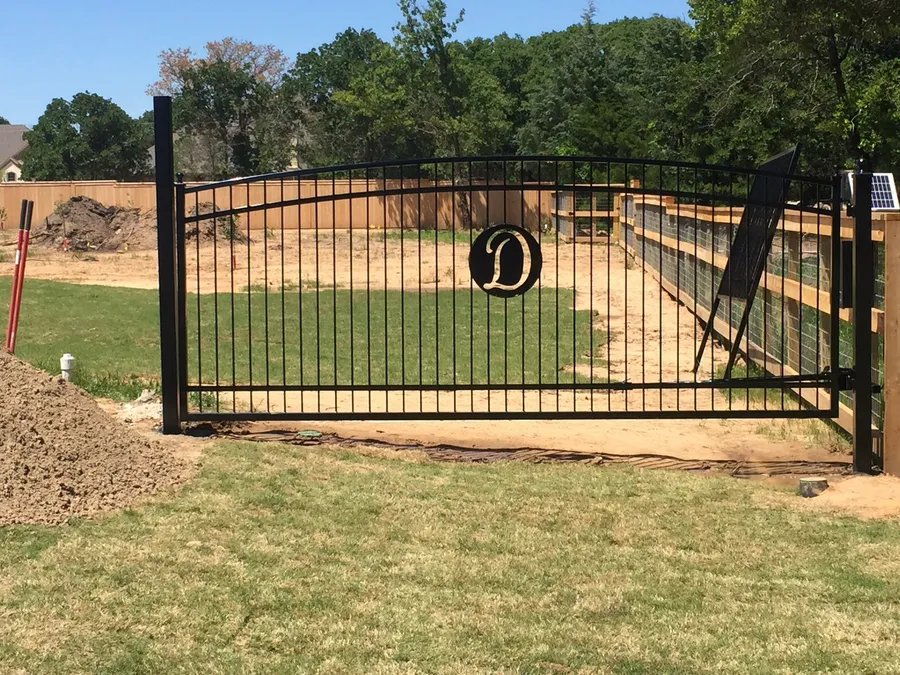

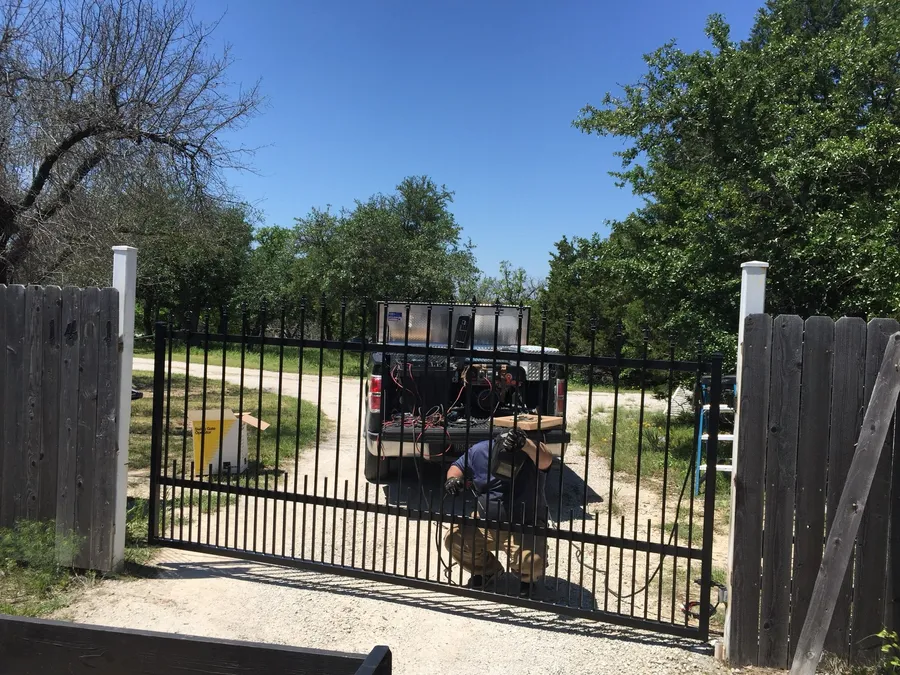

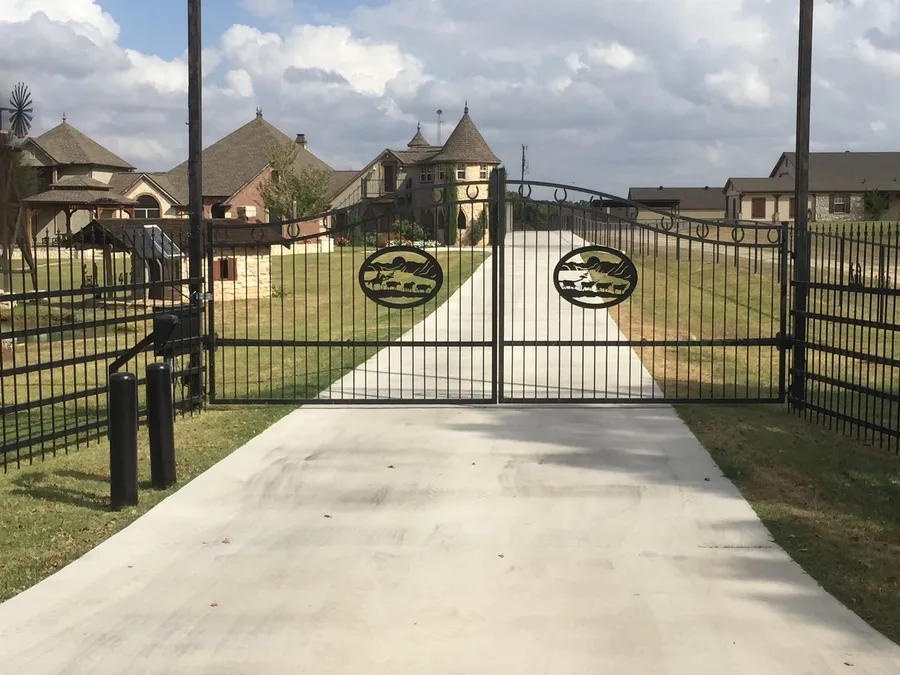

Recent Gate Projects

Swing or slide?

Swing gates open on hinges like a door and need clear space for the gate to swing. Slide gates roll sideways along the fence line, which suits wide openings and driveways without room for a swing.

Solar or AC power?

Solar models charge a battery from a panel, which helps when the gate sits far from an outlet. AC-charged models run from a power line and keep a battery backup for outages.

Gate size and traffic

Each opener is rated for a maximum gate length, weight and number of cycles per day. Tell us about your gate and we will recommend a model that fits.

Residential Gate Openers

Swing gate openers for homes, driveways and ranch entrances.

LiftMasterLA400PKGUL

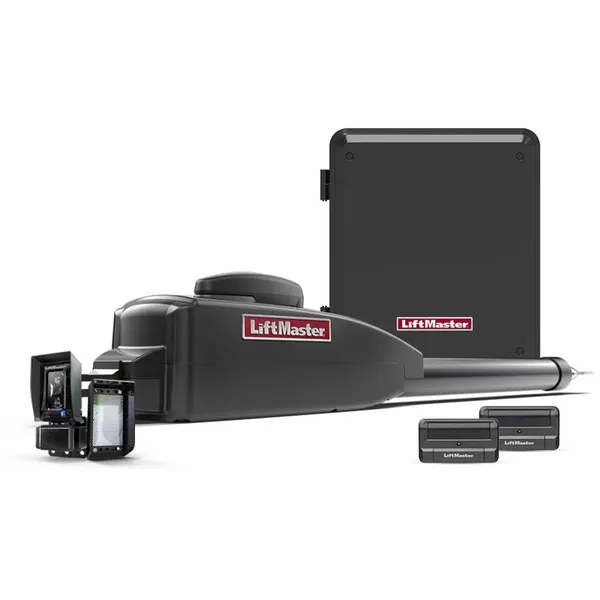

LiftMaster LA400PKGUL Swing Gate Opener

Single swing · 24V DC · battery backup

A complete single swing gate opener package for gates up to 16 ft long or 850 lbs, rated for 100 cycles a day.

24V DC continuous-duty P3 Motor® in a cast-aluminum housing
Rust-resistant gold zinc-plated steel chassis and an all-metal worm gear drive
Security+ 2.0 encrypted signal guards against interference
Photo eye stops the gate from closing on a vehicle or person
Works with the myQ app to open, close and get alerts from anywhere
Optional expansion board adds Quick Close to stop tailgaters

What's included

Primary arm (LA400DC)
Battery backup with control board, two 7Ah batteries
Monitored retro-reflective photo eye
Two remotes with visor clips

Specifications

Max gate: 16 ft or 850 lbs
Opening time: 90° in 15 to 17 seconds
Duty rating: 100 cycles per day
UL usage class: I, II, III and IV
Power: 120V single phase

Manufacturer warranty: 2 years operator; 1 year accessories

Ask About the LA400PKGUL

LiftMasterLA412PKGUL

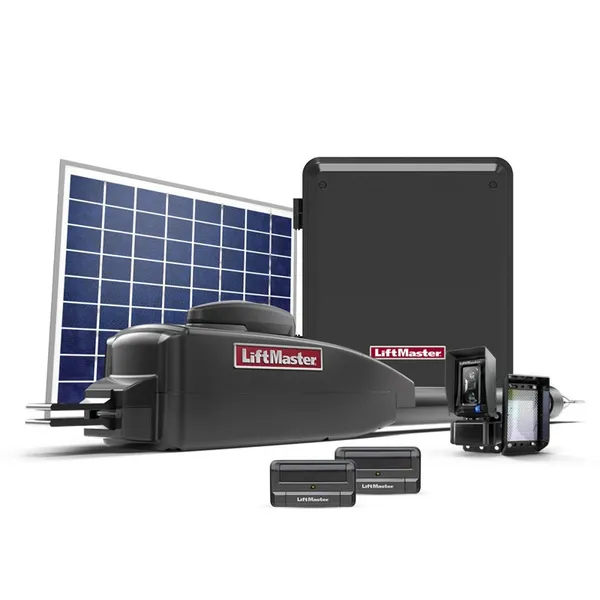

LiftMaster LA412PKGUL Solar Swing Gate Opener

Single swing · solar powered

A solar-powered swing gate opener for gates where power is not easy to reach. The solar panel charges a 12V battery that runs the gate.

Heavy-duty cast-aluminum housing and DC motor
Smooth start and stop reduces wear
Security+ 2.0 encrypted signal with extended range
Safety reversing with an inherent sensor and monitored photo eye
myQ app control and real-time alerts with an add-on Internet Gateway
Works with LiftMaster access control such as the CAPXL and CAP2D
UL 325 tested. We will recommend the right secondary safety devices for your gate

What's included

Primary arm (LA412DC)
Battery backup with control board
Monitored retro-reflective photo eye (LMRRUL)
Solar panel
Two remotes with visor clips

Specifications

Max gate: 850 lbs at 10 ft, 750 lbs at 12 ft, 650 lbs at 14 ft, 550 lbs at 16 ft
Opening time: 90° in under 23 seconds
Max travel: 115°
Cycle rate: 100 cycles
Power: Solar only, 12V DC battery
Operating temperature: -4°F to 140°F

Manufacturer warranty: 2 years operator

Ask About the LA412PKGUL

NiceApollo 1500

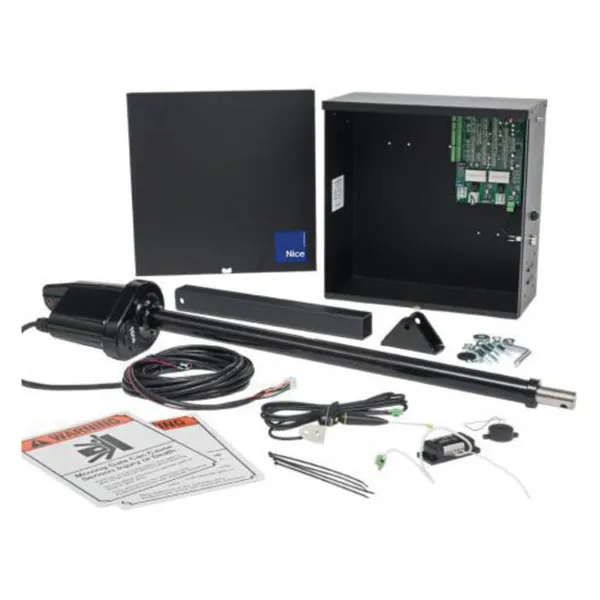

Nice Apollo 1500 Swing Gate Opener

Single or dual swing · AC or solar · built-in receiver

A weather-resistant residential swing gate opener, also known as the Apollo 1500, for gate leaves up to 16 ft and 600 lbs. It now comes with a built-in receiver.

Single or dual gate setups
Runs on a 12V DC battery charged by AC or solar power
Corrosion-resistant acme screw drive
Nice BlueBUS 2-wire system identifies monitored photo eyes
Low maintenance, all-weather design

What's included

Control box (CBOX) with 636 control board
816-1 arm
318N receiver
ABF/A antenna kit

Specifications

Max gate leaf: 16 ft and 600 lbs
Opening time: 90° in 14 to 16 seconds
Duty cycle: Continuous on AC; on solar it depends on charging
Operating temperature: -4°F to 122°F
Control box: 18 x 18 x 8 in., black powder-coated steel

Ask About the Apollo 1500

USAutomaticPatriot I Solar

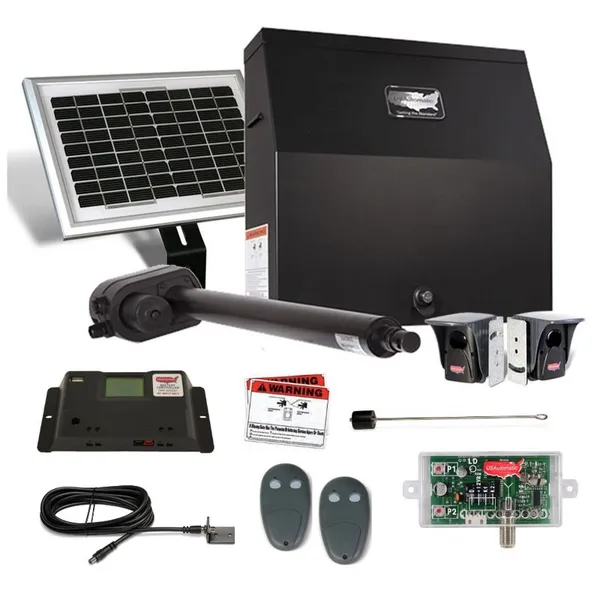

USAutomatic Patriot I Solar Single Swing Opener

Single swing · solar charged

A solar-charged kit for single swing gates in places without easy access to AC power. The panel keeps the battery charged for steady operation.

Solar charging for remote gates
Complete kit with photo eyes and remotes
LCR radio receiver with antenna

What's included

Cabinet and Patriot actuator
Battery controller
10-watt solar charging kit
Set of photo eyes
Two wireless 2-button remotes
LCR radio receiver with harness, antenna, coax cable and bracket
Two safety signs

Manufacturer warranty: 3 years components; 5 years control board

Ask About the Patriot I Solar

USAutomaticPatriot I AC

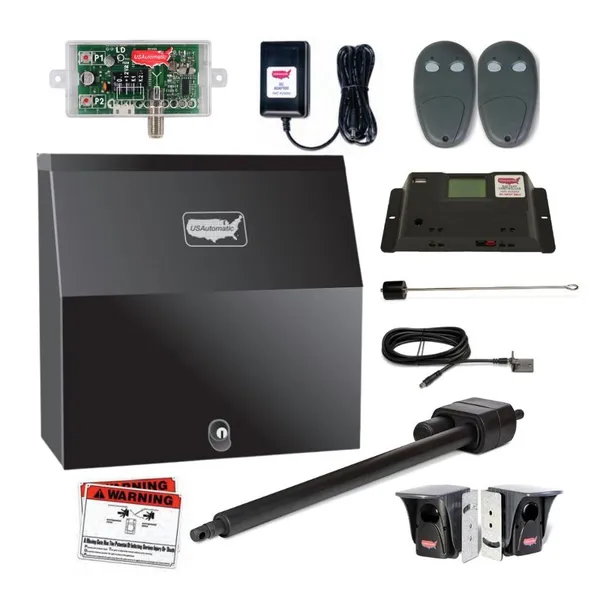

USAutomatic Patriot I AC Single Swing Opener

Single swing · AC charged · battery backup

An AC-charged kit for single swing gates at homes. It runs from a power connection and keeps a battery backup so the gate still works during an outage.

AC charging for continuous operation
Battery backup for power outages
Complete kit with photo eyes and remotes

What's included

Cabinet and Patriot actuator
Battery controller
AC charging transformer
Set of photo eyes
Two wireless 2-button remotes
LCR radio receiver with harness, antenna, coax cable and bracket
Two safety signs

Manufacturer warranty: 3 years components; 5 years control board

Ask About the Patriot I AC

Commercial Gate Openers

Slide gate operators for businesses, ranches and gates that see heavy daily traffic.

LiftMasterRSL12UL

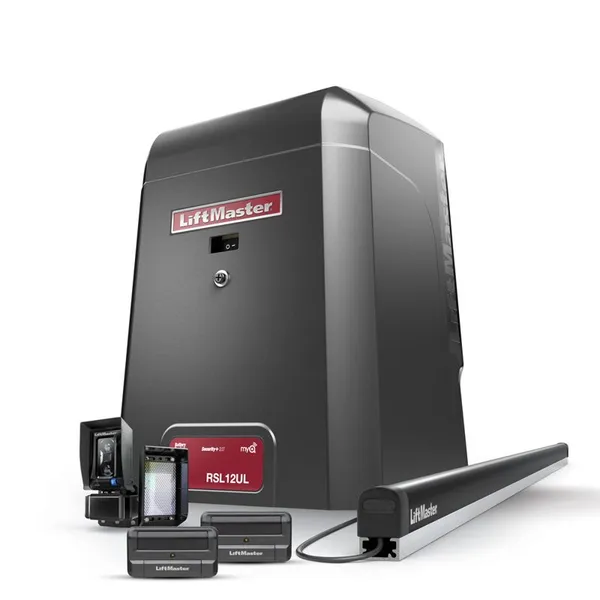

LiftMaster RSL12UL Slide Gate Operator

Residential and light commercial slide · 12V DC

A light-commercial slide gate operator for gates up to 25 ft long or 800 lbs, rated for 120 cycles a day.

12V DC continuous-duty P3 Motor with a 15:1 oil-bath worm gear
Rust-resistant gold zinc-plated steel chassis and a one-piece UV-resistant cover
LED diagnostic display helps with setup and troubleshooting
Solar ready, with panels available as an add-on
Security+ 2.0, supports up to 50 remotes
HomeLink® compatible (version 4 and higher)

What's included

5 ft resistive safety edge
Photo eye (LMRRUL) with protective hoods
25 ft chain
Two remotes with visor clips

Specifications

Max gate: 25 ft or 800 lbs
Duty rating: 120 cycles per day
Power: 115V AC
Operating temperature: -4°F to 140°F, down to -40°F with optional heater
Operator weight: 100 lbs

Manufacturer warranty: 3 years operator

Ask About the RSL12UL

LiftMasterCSL24UL

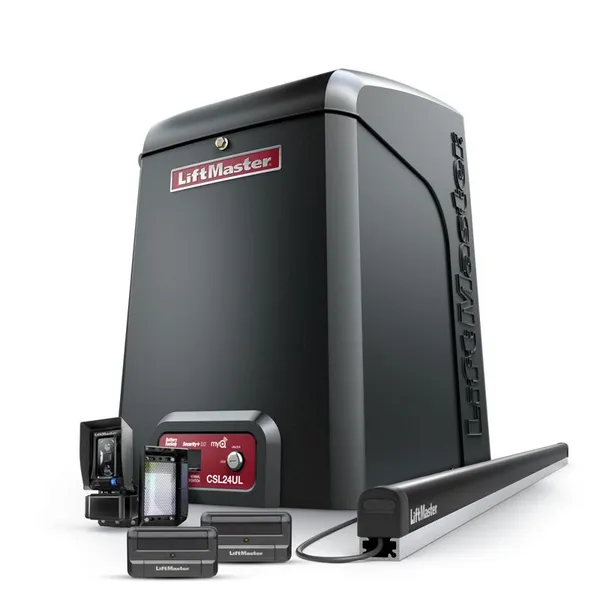

LiftMaster CSL24UL High-Traffic Slide Gate Operator

High-traffic commercial slide · 24V DC

Built for continuous, high-traffic commercial use on gates up to 50 ft long or 1,500 lbs.

24V DC continuous-duty P3 Motor with a 10:1 oil-bath worm gear
Gold zinc-plated steel chassis and a heat and corrosion-resistant polycarbonate cover
POSILOCK returns the gate to closed if it is pushed off position
Anti-tailgate and Quick Close shut the gate behind each vehicle
Pre-motion alarm sounds three seconds before the gate moves
Programmable auxiliary relays for warning lights or alarms
HomeLink compatible (version 4 and higher)

What's included
